Intelligent Electronic Drain Zero Air Loss - 115/60/1
$145.00
$120.00
INTELLI-DRAIN SALES BROCHURE CLICK HERE
Description

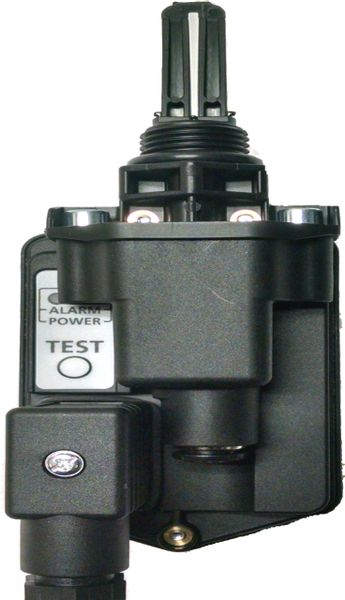

The Intelli-Drain is an electronic zero air loss drain that has been designed for fully automatic discharge of condensate or any other nonaggressive fluids from compressed air systems. The Intelli-Drain is compact in design and primarily used on filter housings. Operation is simple! As condensate accumulates in the bottom of the filter housing the condensate level is detected by the precise capacitive level sensor. When the condensate level is high enough the condensate is then discharged from the system without any air loss. Intelli-Drain is also equipped with a led indicator and manual test button to check drain operation.
Technical
Data
Intelli-Drain
Voltage
115/50-60/1
Internal Fuse
5 x 20 1A T
Power Consumption
10 VA
Operating Pressure Range
0 – 232 PSIG
Operating Temperature Range
35 – 150 F
Inlet Connection
½” Parallel Thread
Outlet Connection
5/16” Push
Connector
Drain Capacity
2.11 Gallons / Hour
Protection Class
IP54
Weight
10.58 ounces
Technical Data
Intelli-Drain
Voltage
115/50-60/1
Internal Fuse
5 x 20 1A T
Power Consumption
10 VA
Operating Pressure Range
0 – 232 PSIG
Operating Temperature Range
35 – 150 F
Inlet Connection
½” Parallel Thread
Outlet Connection
5/16” Push Connector
Drain Capacity
2.11 Gallons / Hour
Protection Class
IP54
Weight
10.58 ounces
