EMD12 Series Zero Air Loss Condensate Drain

EMD12 Condensate Drain PDF Sales Brochure Click Here

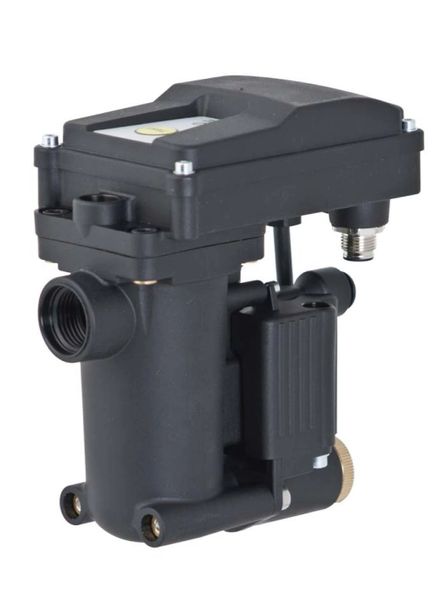

The EMD12 series drain has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air system. The units can be installed as external drain on any application specified. Condensate accumulates in the collecting reservoir. When the level is high enough condensate is being discharged from the system without any air losses. Fluid level is detected by precise capacitive level sensor. Special self-cleaning direct acting valve assures reliable operating. EMD series is also equipped with operation alarm, led indicator, test button and internal strainer. Version with Service Network for diagnostics parameter setting and alarm output is also available.

                   ADVANTAGES

• Integrated strainer (easy access/cleaning)

• Compact design

• Direct acting, self-cleaning valve (patented)

• Optimized for easy service (service kit)

• Horizontal or vertical installation

• PA housing

               APPLICATIONS

• air compressor (piston or screw)

• after-cooler

• cyclone condensate separator

• pressure vessel/air tank

• air dryer

• air filter

                             Technical data

Models:                                            EMD 12       EMD 12C

Service network connection option:   No                    Yes

Voltage 115/1/60 VAC:                      Yes                   Yes

Fuse: 5 x 20 1A T

Power: 10 VA

Frequency: 50-60 Hz

Operating pressure range: 0 - 232 psi

Drain capacity (G/H @101 psi): 3.17 gallons per hour

Operating temperature range: 35-149 °F

Inlet connection: 1/2’’

Outlet connection: Push connection for tube 8mm

Protection class: IP54

Weight [lbs]: 1.21 lbs

Dimensions L × W × H [inches]: 5.23” × 2.99” × 5.78”
