5523 Combo D-Lux Condensate Drain


Combo D-Lux PDF Click Here

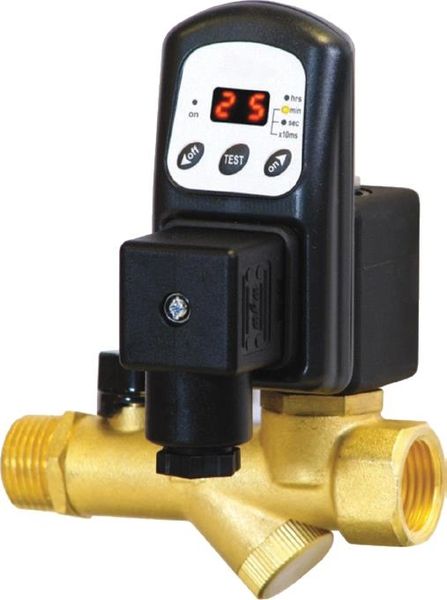

The COMBO D-LUX timer controlled condensate drain combines a premium electronic timer controlled drain, a ball valve, and a mesh strainer into one compact easy to install package. Suitable for any flow range and pressures up to 300 psig, the COMBO D-LUX is perfect for virtually any compressed air application, especially those with solid particulate contaminants. With easy to use push button timer settings, a bright digital display, test button, and LED lights, the COMBO D-LUX can be adjusted to open or close for any time period from 10 milliseconds to 99 hours! There is no application it can’t handle. Use it on any compressor,receiver, filter or refrigerated air dryer in any size compressed air system.


Integrated Valve & Strainer

No balance line required

Built in test function

LED statues lights

300 psig design pressure

Serviceable direct acting valve

Adjustable time operation


Compact & easy to install

Does not air-lock during operation

Manually activate drain for proper operation

Visual verification of drain statues

Suitable for a wide range of applications

Inexpensive to maintain

Suitable for a wide range of applications and flow rates


Unlimited Compressor Capacity

Inlet Connections: 1/4" NPT (F) & 1/2" NPT (M)

Outlet Connection: 1/2" NPT (M)

Available Voltages (VAC): 24, 115, 230, 380

Available Voltages (VDC): 12 or 24

Min / Max Pressure (PSIG): 0 / 300 PSIG

Min / Max Temperature (F): 34 / 122 F

Timer Range: Open time 10 milliseconds to 99 hours

                       Closed time 10 milliseconds to 99 hours

Discharge Valve Material

Orifice Diameter: 4MM

Type: 2/2 Way Direct Acting

Body: Brass

Seal Material: Viton (FPM)

Electrical Enclosure: Nema 4 / IP65


Please Specify The Required Voltage When Ordering
