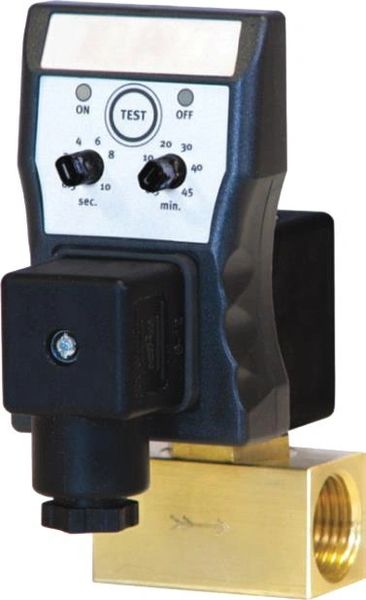

The Optimum timer controlled condensate drain is suitable for a wide range
of compressed air applications including compressors, receivers, filters, and
refrigerated air dryers. With an easily adjustable electronic timer, a direct acting solenoid valve, a
large orifice, and options for a brass or stainless steel body, this drain provides reliable
compact condensate removal. The Optimum is easy to install, simple to adjust and rated for pressures up
to 230 psig*. It includes a test switch, LED on/off indication and a fully serviceable
valve. Most importantly, the large 4.5 mm orifice means it is perfect for difficult applications
with high condensate flow rates and solid particulate contaminants.
Perfect
for installations with:
•
High condensate flow rates
•
Particulate contamination
•
Corrosive environments
•
Pressures up to 300 psig
•
Steady condensate loads
FEATURES
Large
discharge orifice
No balance
line required
Built in
test function
LED status
lights
230 psig
design pressure
Serviceable
direct acting valve
Adjustable
timed operation
BENEFITS
Virtually
unblockable operation
Does
not air-lock during operation
Manually
activate drain & verify operation
Visual
verification of drain status
Suitable
for a wide range of applications
Inexpensive
to maintain
Fits
any equipment at any flow rate
Maximum Compressor Capacity: Unlimited
Inlet / Outlet Connection Options: ¼”, ⅜” & ½”
NPT (F)
Discharge Valve Orifice Diameter: 4.5 mm
Type 2/2 Way Direct Acting
Valve Body Material: Brass or Stainless Steel
Seal Material Viton (FPM)
Operating Pressure:
Minimum 0 psig
Maximum: Standard: 230
psig
Optional: 300 psig
Condensate Temperature:
Minimum 34F
Maximum 122F
Voltage Options:
DC 12 or 24
VDC
AC 24, 115,
230 or 380 VAC
Timer Range:
Open 0.5 to 10
seconds
Closed 0.5 to
45 minutes
Power Connection DIN 43650-A
Electrical Enclosure NEMA 4 / IP65
