2611 Optimum High Pressure Condensate Drain


Optimum High Pressure Condensate Drain PDF Click Here

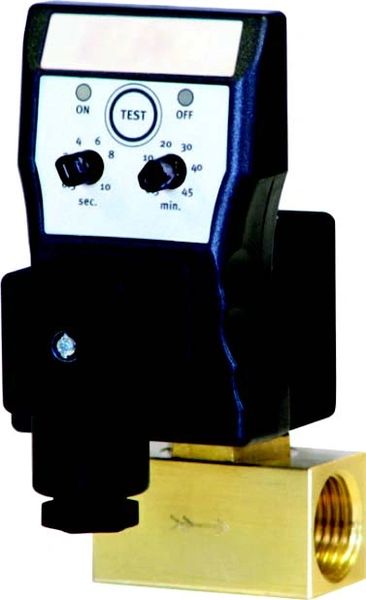

The Optimum High Pressure timer controlled condensate drain is suitable for virtually any compressed air application up to 7000 psig. Includes an easily adjustable electronic timer, a direct acting solenoid valve and choice of brass or 304 stainless steel body. The Optimum High Pressure is easy to install, simple to adjust, and comes standard with a test switch, LED on/off indication, and a fully serviceable valve. Choose from a machined brass body from 600 to 3625 psig, or a machined stainless steel body from  600 to 7000 psig. This drain is perfectly suited for high pressure applications and high  condensate flow rates.

Perfect for installations with:

• High pressure applications

• Brass or stainless fittings

• Corrosive environments

• High condensate flow rates

• Steady condensate loads


Up to 7000 psig MAWP

No balance line required

Built in test function

LED status lights

Serviceable direct acting valve

Adjustable timed operation


Perfect for high pressure applications

Does not air-lock during operation

Manually activate drain & verify operation

Visual verification of drain status

Inexpensive to maintain

Fits any equipment at any flow rate

      Technical Specification

Max Operating Pressure: 600, 1200, 3625, 5000, 6000

Max Compressor Capacity: Unlimited

Inlet / Outlet Connections: ¼”, ⅜” or ½” NPT (F) ¼” NPT (F)

Valve Orifice Diameter: 2.0 mm, 1.2 mm, 1.0 mm, 0.9 mm

Type 2/2 Way Direct Acting

Body Material: Brass or 304 Stainless Steel 304 Stainless Steel

Condensate Temperature:

                                        Minimum 34F

                                        Maximum 122F

Voltage Options:

                          DC 12 or 24 VDC

                          AC 24, 115, 230 or 380 VAC

Timer Range:

                     Open 0.5 to 10 seconds

                     Closed 0.5 to 45 minutes

Power Connection DIN 43650-A

Electrical Enclosure NEMA 4 / IP65
