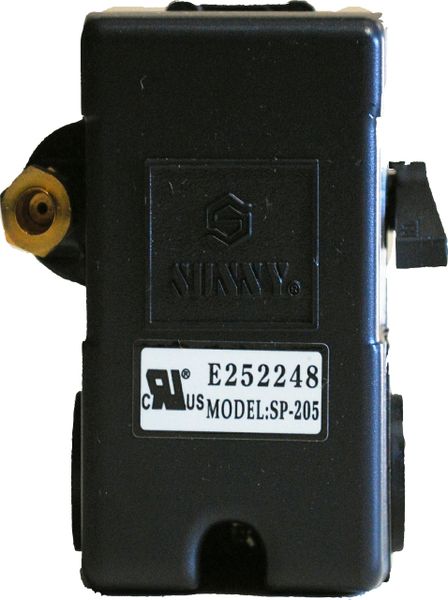

SUNNY PRESSURE SWITCH LF-SU-L1

Sunny Pressure Switches Sales Brochure PDF Click Here

The LF-SU-L1 is a single port pressure switch is used to control tank pressure. It has adjustable settings with a minimum close / cut-in of 35 psig and a max open / cut-out of 150 psig with a differential range of 30-40 psig. The pressure switch is suitable for a single phase 115V 1-1/2 HP motor, a single phase 230V 2 HP motor, and a 3 phase 230V 3 HP motor. Factory setting are 95-125 psig. The pressure switch includes an on/off lever and un-loader.

Features

• Corrosion Resistant and Non Metallic Cover

• Ample Wiring Room

• 2 Ground Screw

• Visible Contact

• Easy to Adjust

• No Drift Pressure Setting

• Automatic Unloader Valve Standard

• No Wire Looping

• Pulsation Dampener Standard

• Captive Cover Screw

• On/Off Lever Standard

Available Models

LF-SU-L1   single port     95-125 psig

LF-SU-H1   single port  145-175 psig

LF-SU-L4   four port        95-125 psig

LF-SU-H4   four port     145-175 psig
