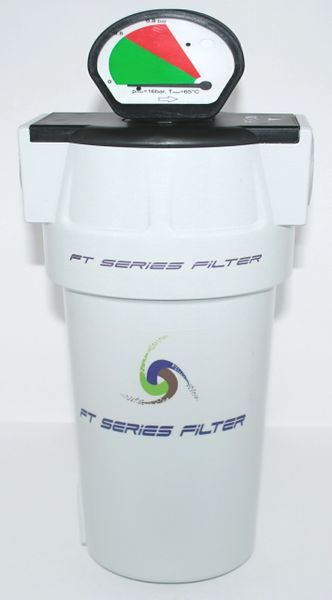

FT Series Coalescing Filter 65 SCFM

$290.00 $240.00

FT Series Sales Brochure PDF Click Here

The FT Series filters is a 65 scfm high efficient coalescing filter designed to remove particulates, liquids and oils from compressed air systems. The filter body is constructed of aluminum with an anodized coated internal housing. The exterior is  powder coated white. There are four different micron grades to choose from for your application needs that range from 5 micron, 1 micron, 0.01 micron and 0.01 with activated carbon for taste and odor removal. Filters comes supplied with either an internal mechanical float drain (standard) or an air lock eliminator (optional) to attach any style 1/2" NPT condensate drain. DP gauge is standard on this model and included in the price shown.


Model   SCFM Rating  Connection Size

FT65          65                 3/4" NPT F


Element Models          Micron Grade

TP                                    5 Micron

TS                                    1 Micron

TX                                    0.01 Micron

TZ                                    0.01 with activated carbon



Drain Options

I - (internal mechanical float drain) Standard

L- (1/2" NPT air lock eliminator for any style drain) Optional


Gauge Options

B - Blank (no gauge)

G - DIG04 - standard dp gauge

R - DIG06 - dp gauge with remote alarm light

H - DIG08 - heavy duty industrial grade dp gauge


When ordering please select the correct options to build your filter.

Select Filter Element Grade

Select Drain Option

Select Gauge Option

If you are unsure what product you require or need additional assistance placing your order please contact us for assistance.
