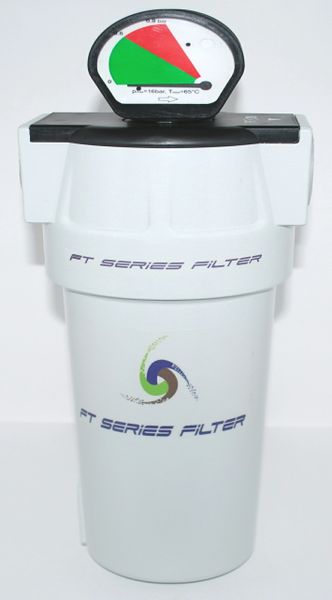

FT Series Coalescing Filter 600 SCFM

$800.00 $675.00

FT Series Sales Brochure PDF Click Here

The FT Series filters is a 600 scfm high quality coalescing filter designed to remove particulates, liquids and oils from compressed air systems. The filter body is constructed of aluminum with an anodized coated internal housing. The exterior is  powder coated white. There are four different micron grades to choose from for your application needs that range from 5 micron, 1 micron, 0.01 micron and 0.01 with activated carbon for taste and odor removal. Sizes range from 30 through 1500 scfm. All filters come supplied with air lock eliminator to attach any style 1/2" NPT condensate drain. Please note you must add an additional drain to remove the condensate moisture


Models  SCFM Rating  Connection Size

FT600        600              2" NPT F


Element Models          Micron Grade

TP                                    5 Micron

TS                                    1 Micron

TX                                    0.01 Micron

TZ                                    0.01 with activated carbon



Drain Options

L- (1/2" NPT air lock eliminator for any style drain)

L is standard on all filter models FT450 - FT1500


Gauge Options

B - Blank (no gauge)

G - DIG04 - standard dp gauge

R - DIG06 - dp gauge with remote alarm light

H - DIG08 - heavy duty industrial grade dp gauge


When ordering please select the correct options to build your filter.

Select Filter Element Grade

Select Gauge Option

If you are unsure what product you require or need additional assistance placing your order please contact us for assistance.
