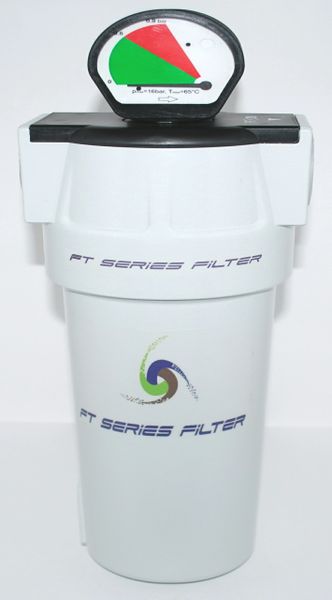

The FT Series filters is a 45 scfm high efficient coalescing filter designed to remove particulates, liquids and oils from compressed air systems. The filter body is constructed of aluminum with an anodized coated internal housing. The exterior is powder coated white. There are four different micron grades to choose from for your application needs that range from 5 micron, 1 micron, 0.01 micron and 0.01 with activated carbon for taste and odor removal. Filter comes supplied with either an internal mechanical float drain (standard) or an air lock eliminator (optional) to attach any style 1/2" NPT condensate drain. DP Gauge shown is optional and not included in the standard price.
Model SCFM Rating Connection Size
FT45 45 1/2" NPT F
Element Models Micron Grade
TP 5 Micron
TS 1 Micron
TX 0.01 Micron
TZ 0.01 with activated carbon
Drain Options
I - (internal mechanical float drain) Standard
L- (1/2" NPT air lock eliminator for any style drain) Optional
Gauge Options
B - Blank (no gauge)
G - DIG04 - standard dp gauge
R - DIG06 - dp gauge with remote alarm light
H - DIG08 - heavy duty industrial grade dp gauge
When ordering please select the correct options to build your filter.
Select Filter Element Grade
Select Drain Option
Select Gauge Option
If you are unsure what product you require or need additional assistance placing your order please contact us for assistance.
