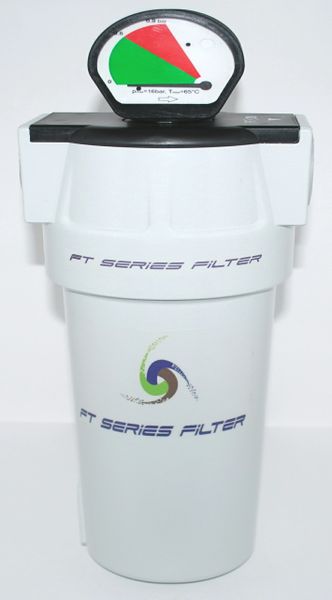

The FT Series filters is a 1500 scfm high efficient coalescing filter designed to remove particulates, liquids and oils from compressed air systems. The filter body is constructed of aluminum with an anodized coated internal housing. The exterior is powder coated white. There are four different micron grades to choose from for your application needs that range from 5 micron, 1 micron, 0.01 micron and 0.01 with activated carbon for taste and odor removal. Filter comes supplied with an air lock eliminator to attach any style 1/2" NPT condensate drain.
Models SCFM Rating Connection Size
FT1500 1500 3" NPT F
Element Models Micron Grade
TP 5 Micron
TS 1 Micron
TX 0.01 Micron
TZ 0.01 with activated carbon
Drain Options
L- (1/2" NPT air lock eliminator for any style drain)
L is standard on all filter models FT450 - FT1500
Additional drain must be added
Gauge Options
B - Blank (no gauge)
G - DIG04 - standard dp gauge
R - DIG06 - dp gauge with remote alarm light
H - DIG08 - heavy duty industrial grade dp gauge
When ordering please select the correct options to build your filter.
Select Filter Element Grade
Select Gauge Option
If you are unsure what product you require or need additional assistance placing your order please contact us for assistance.
