The DZL20 has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air systems. The unit can be installed as an external drain on any application specified. Condensate accumulates in the aluminum reservoir and when the level is high enough condensate will be discharged from the system without any air losses resulting in a savings of energy. The direct acting valve is operated by a precise level controlled floater which assures reliable and efficient operation. Due to robust aluminum housing, the DZL20 is suitable for heavy duty applications. The DZL20 is also equipped with separate manual drain for venting.
Ideal Applications:
• air compressor (piston or screw)
• after-cooler
• cyclone condensate separator
• pressure vessel/air tanks
• air dryers
• air filters
Technical Data
Operating Temperature: 35 - 149 F
Operating Pressure: 3 - 290 psig
Weight: 106 pounds
Drain Capacity: 44 gallons per hour
Inlet / Outlet Connections: 1/2"
Medium: air, water, oil

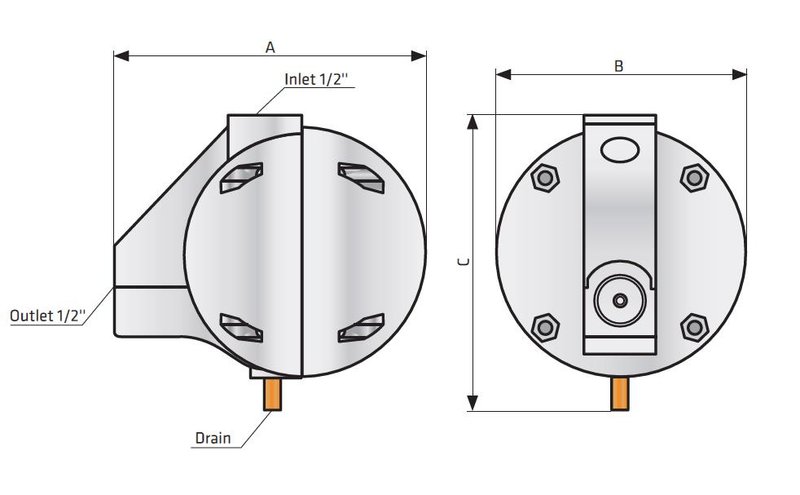

Dimensions: A x B x C: (A) 5.31" x (B) 4.33" x (C) 5.11"
