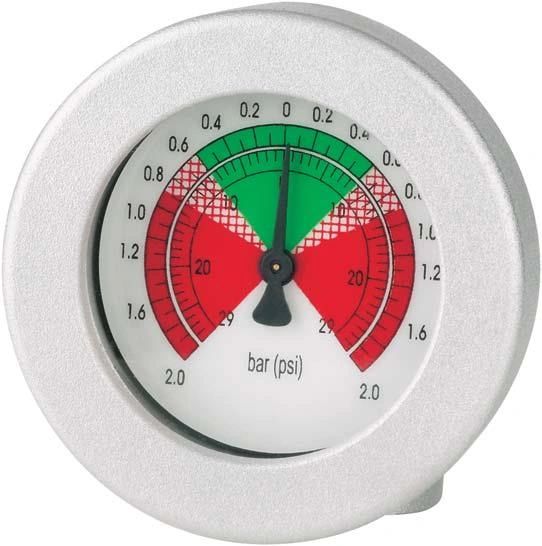

DIG08 Heavy Duty Differential Pressure Gauge

The DIG08 magnetic differential manometer has been developed to indicate pressure drop across the filter element in compressed air system. It detects when the filter cartridge is clogged and should be replaced. DIG08 is typically installed on the head of the filter housing.

APPLICATIONS

• automotive

• electronics

• food & beverage

• chemical

• petrochemical

• plastics

• paint

• general industrial application

DIG08 SERIES

DIFFERENTIAL PRESSURE INDICATOR

Operating pressure: 232 psig

Operating temp. range: 35 – 149F

TECHNICAL DATA – DIG08

Operating pressure range: 0 - 290 psi

Operating temperature range: 35 - 149°F

Weight: 12.69 ounces

Measure range:  29 psi
