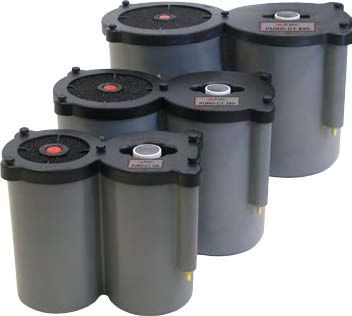

PURO-CT600 Oil / Water Condensate Separator

Puro-CT600 SALES BROCHURE CLICK HERE

The PURO-CT600 use two stages of treatment to separate difficult condensate. With a specially treated polypropylene element and a carbon polisher, you can count on reliable and cost effective condensate separation performance regardless of the type of lubricant or drains you use. These models provide compact, cost effective condensate separation without the need for a settling tank, and include useful features like a sample port and bottle, an overflow indicator to avoid messy spills, and brass threaded connections and adapters. Upgrade to the PURO-CT and discover reliable condensate separation in a small package

BENEFITS                                                                                                                                                                                                                   Eliminates health & safety concerns

Performance is not affected by movement

Including modern synthetic lubricants or even emulsified mixtures

Including all condensate drains

For reliable inlet and outlet piping or tubing connections, and a secure lid

Slows incoming condensate and cleanly discharges compressed air

Avoids spills in the event of a blockage

A polypropylene element and a carbon polisher for optimum performance

Comply with OSHA lifting requirements

Strong and corrosion proof construction

Technical Specifications

Puro-CT Models: CT600

Max Compressor Capacity (SCFM): 600

Max Oil Adsorption Capacity (Gallons): 4.0 gal

Inlet Connection: 1/2" NPT threaded or hose barb

Outlet Connection: 1/2" NPT threaded or hose barb

Housing Material: Polyethylene

Dimensions

Model        CT600

Width         28.7"

Depth           14.8"

Height        18.8"

Weight     41.9 lbs

Order the standard CT600 models to separate oil types:

Mineral oils, synthetic oils, stable condensate emulsions

Order the optional CT600HP models to separate condensate types:

Polyglycol oils
