The

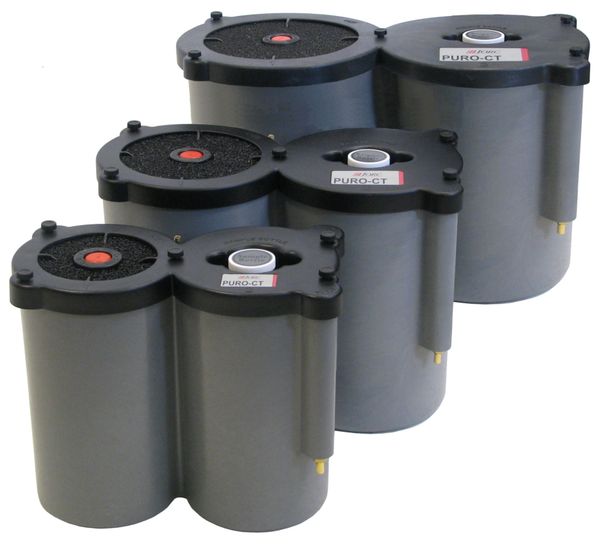

PURO-CT 125 use two stages of
treatment to separate difficultcondensate. With a
specially treated polypropylene element and a carbon polisher, youcan count on reliable and cost effective condensate
separation performance regardless ofthe type of
lubricant or drains you use.These models provide
compact, cost effective condensate separation without the need for a settling tank, and include useful features like a
sample port and bottle, an overflow indicator to avoid messy spills, and brass threaded
connections and adapters. Upgrade to the
PURO-CT and discover reliable condensate separation in a small package
FEATURES
No settling chamber or storagetank required
Can separate any type of lubricant
Can be used with any type of drain
Brass threaded inserts & adapters
Foam mesh depressurization filter
Overflow warning indicator
Two stages
of treatment
Multiple lightweight media bags Polypropylene carbonate housing
BENEFITSEliminates health & safety concerns
Performance is not affected by movement
Including modern synthetic lubricants oreven emulsified mixtures
Including all condensate drains
For reliable inlet and outlet piping or tubingconnections, and a secure lid
Slows incoming condensate and cleanlydischarges compressed air
Avoids spills in the event of a blockage
A polypropylene element and a carbonpolisher for optimum performance
Comply with OSHA lifting requirements
Strong and corrosion proof construction
Technical Specifications
Puro-CT Models: CT125
Max Compressor Capacity (SCFM): 125
Max Oil Adsorption Capacity (Gallons): 0.8 gal
Inlet Connection: 1/2" NPT threaded or hose barb
Outlet Connection: 1/2" NPT threaded or hose barb
Housing Material: Polyethylene
Dimensions
Model CT125
Width 18.3"
Depth 9.8"
Height 15.6"
Weight 15.4 lbs
Order the standard CT125 models to separate oil types:
Mineral oils, synthetic oils, stable condensate emulsions
Order the optional CT125HP models to separate condensate types:
