2321 EAD Timer Condensate Drain

EAD Condensate Drain Valve PDF Click Here

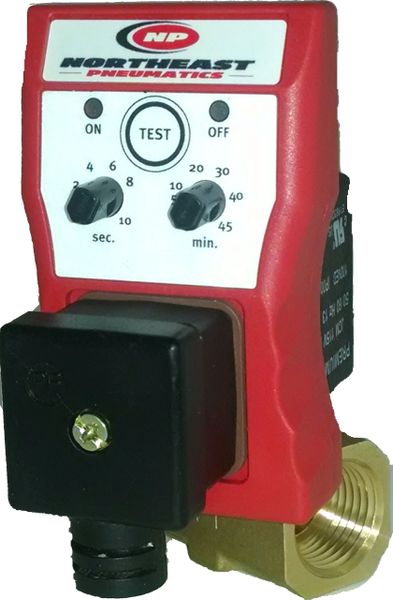

The EAD timer controlled condensate drain is an economical drain suitable for a wide range of compressed air applications including compressors, receivers, filters, and refrigerated air dryers. With an easily adjustable electronic timer, a direct acting solenoid valve and a large discharge orifice, this drain is the most cost effective option for reliable condensate removal. The EAD is easy to install, simple to adjust and rated for pressures up to 230 psig. With a test switch, LED on/off indication and a fully serviceable valve, the EAD offers a long list of features and benefits not typically found at this price point. This is the ultimate in low cost, high performance condensate management.

Perfect for installations with:

• Strict budget limitations

• Multiple drain requirements

• High condensate flow rates

• Pressures up to 230 psig

• Steady condensate loads

         FEATURES

 No balance line required

 Built in test function

 LED status lights

 230 psig design pressure

 Serviceable direct acting valve

Adjustable timed operation

Cost effective design

           BENEFITS

Does not air-lock during operation

Manually activate drain & verify operation

Visual verification of drain status

Suitable for a wide range of applications

Inexpensive to maintain

Fits any equipment at any flow rate

Reliable operation in a low cost drain

Maximum Compressor Capacity Unlimited

Inlet / Outlet Connection Options 1/4”, 1/2” & 3/8” NPT (F)

Discharge Valve

Orifice Diameter 4 mm

Type 2/2 Way Direct Acting

Valve Body Material Brass

Seal Material Viton (FPM)

Operating Pressure

Minimum 0 psig

Maximum 230 psig

Condensate Temperature

Minimum 34o F

Maximum 122o F

Voltage Options

DC 24 VDC

AC 24, 115 or 230 VAC

Timer Range

Open 0.5 to 10 seconds

Closed 0.5 to 45 minutes

Power Connection DIN 43650-A

Electrical Enclosure NEMA 4 / IP65

Please select the appropriate size and voltage when ordering
